Customized Oven with N2 Atmosphere and PCW Cooling

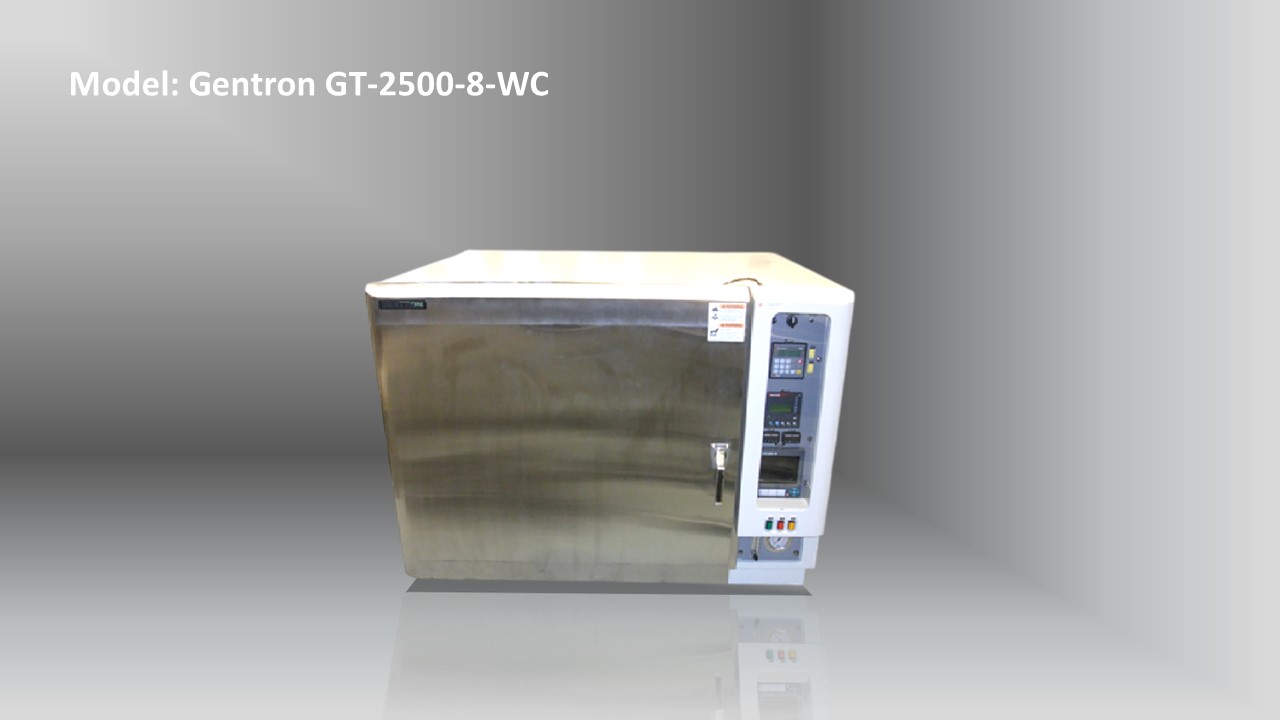

The GT2500-8-WC-R is a customized oven designed for curing processes under a controlled nitrogen atmosphere. It features N2 injection via flow meter and an O2 analyzer to maintain low oxygen levels within specification.
Cooling is provided by a water-cooled heat exchanger (PCW), enabling the chamber to drop from +170 °C to +50 °C within 60 minutes while handling a 50 kg aluminum load.
The chamber is constructed from high-grade stainless steel for durability and corrosion resistance. Precise temperature profiling and controlled ramp-down rates optimize the curing process.
Temperature Range: 50 °C to 250 °C
Heating Rate: Approx. 2.5 °C per minute
Atmosphere: Nitrogen with O2 monitoring and control
Cooling: Process Cooling Water (PCW)
Construction: High-grade stainless steel
Cooling Capacity: 170 °C to 50 °C in 60 minutes (50 kg aluminum load)
