Thermal Processing Technology

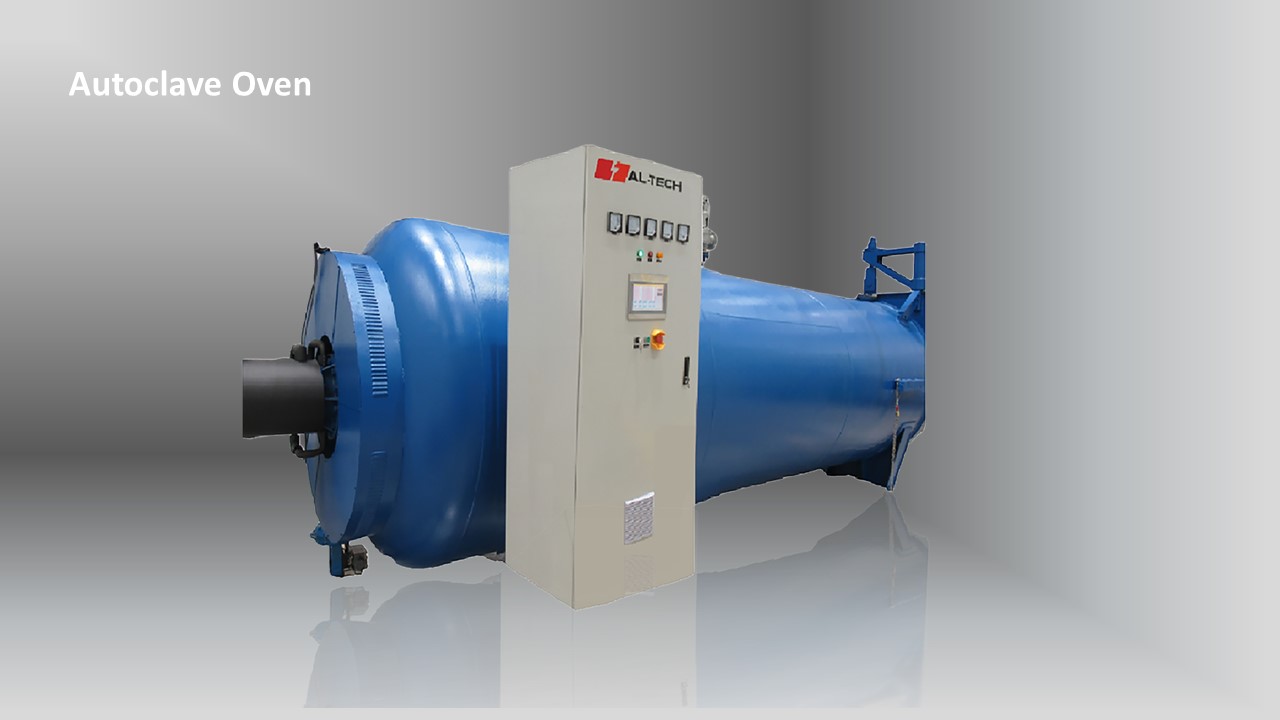

Industrial autoclaves are specialized pressure vessels designed to process materials under elevated temperature and pressure. They are widely applied in composite curing, bonding, and sterilization, ensuring strength, durability, and dimensional stability of critical components.
In aerospace and aircraft manufacturing, autoclave curing is essential for meeting stringent quality and safety requirements. All units are designed and manufactured in compliance with international pressure vessel certification standards (e.g., ASME Section VIII Div.1, PED 2014/68/EU, GB150) to ensure reliability and regulatory acceptance.
Main Material: SA-516M Gr.485 / SA-106M Gr.B / SA-105M
Design Pressure: 1.1 MPa / -0.1 Mpa
Max. Working Pressure: 1.1 MPa @ 160 °C
MDMT: 18.5 °C @ 1.1 MPa
Design Temperature: 160 °C
Volume: Customized
Certifications: ASME Section VIII Div. 1, PED 2014/68/EU, GB 150 (others upon request)
